OEM Concealed Type Automative Grade Dash Camera Front And Rear Dual Recording 1080P
OVERVIEW

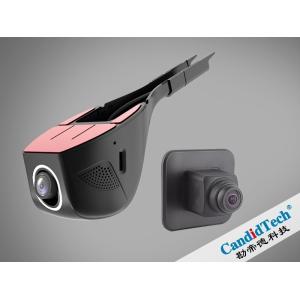

CandidTech's automotive grade front and rear view dual recording dash cam, based on the Ambarella A12A25 solution, features the industrial grade GC2093 image sensor. It outputs 1080P high resolution videos, ensuring crystal clear footage of both the front and rear views.
With Wi - Fi connectivity, you can effortlessly access recordings via a dedicated mobile APP. HDR/WDR technology optimizes image quality across varying lighting conditions, while the 0.1 Lux super low light night vision ensures excellent visibility even in near - darkness.
A three - axis gravity sensor is in place to detect sudden impacts, automatically locking and saving emergency videos. The dash cam supports loop recording, maximizing storage usage. Functioning seamlessly within a temperature range of - 40°C to 85°C, it's built to endure the harshest automotive environments, making it a reliable choice for comprehensive driving recording.
SPECIFICATIONS
| Front Camera |
| Horizontal FOV | 120±3° |
| Vertical FOV | 62±3° |
| F/No | 1.8 |
| Waterproof Level | IP5K5K |
| Structure | 6G+IR Filter |
| Resolutions | 1920(H) x 1080(V) (16:9 mode) |
| Sensitivity | 4.0 V/lux-sec |
| Night Vision | Low light level night vision |
| Frame Rate | 30 fps (1080P) |
| SNR | 48dB min |
| Dynamic Range | 96dB min |
| Minimum Illumination | 50IRE@0.1 Lux |
| Maximum Illumination | 100,000 Lux |
| Memory |
| Capacity | 16~128GB |
| Video Files | MP4 |
| Data Protection File | Encryption function |
| Data Processing | When memory card is full, the new videos will cover the old ones. |
| Image Compressed Format | H.264 |
| Compression Ratio | 200:1 |
| Operation Mode |
| Collision Lock Recording | Automatic lock protection when collision |
| Privacy Protection | Sound turn-off optional |
| Circular Recording Mode | Recording time 1/3/5 minutes setting optional |
| Auto Power On | Yes |
| Video Output |
| Video Format | NTSC |
| Output Interface | CVBS signal connect with Wi-Fi then output to mobile phone APP |
| Frame Correction | Build-in |
| Power |
| Power Supply | Battery + ACC |
| Operation Voltage | 9~16VDC |
| Operation Current | 270mA |
| Quiescent Current | < 0.3mA |
| Power Consumption | 3W |
| General |
| Operation Temperature | -40℃～85℃ |
| Storage Temperature | -40℃～95℃ |
| DVR Weight | 138g(for reference only) |
| Rear-view Recording Kit |
| Horizontal FOV | 120±3° |
| Vertical FOV | 62±3° |
| Image Compressed Format | H.264 (MP4) |
| Photo Format | JPG |
| Video Pixel | 2 million pixels |
| Video Output Signal | LVDS |
| Operation Voltage | 5VDC |
| Minimum Illumination | 0.1 lux |
| Frame Rate | 30 fps |
| Waterproof Level | IP6K9K |
| Resolutions | 1920(H) x 1080(V) |
SPECIAL FUNCTIONS

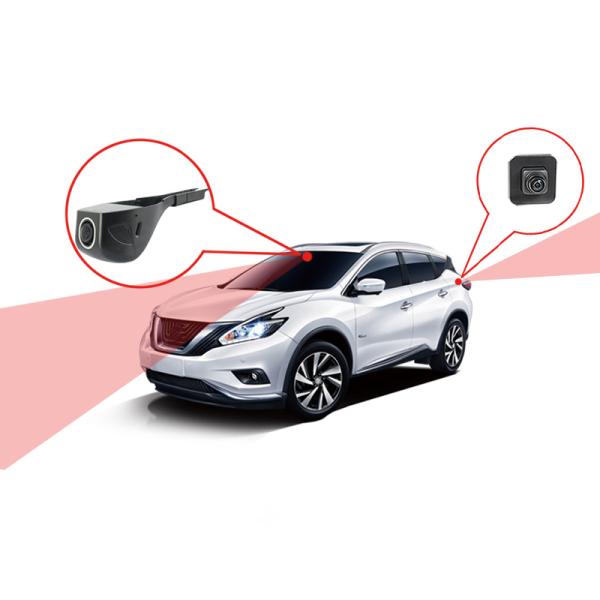

1) Automative Grade 1080P Front and Rear Dual Recording.
2)Outstanding super night vision feature: Powered by advanced optics and intelligent algorithms, it excels in low - light scenarios. Even in near pitch black conditions.This ensures comprehensive surveillance day and night, enhancing driving safety and providing reliable evidence during nocturnal drives.
3) Wi-Fi Connect: Video Playback
User can watch video playback on smart phone.
- Continuous video recording(1080P);
- Connect with smart phone APP through Wi-Fi;
- Previous video playback;
- User can copy the videos to the smart phone;
- User can upload the videos to the Internet by smart phone.
